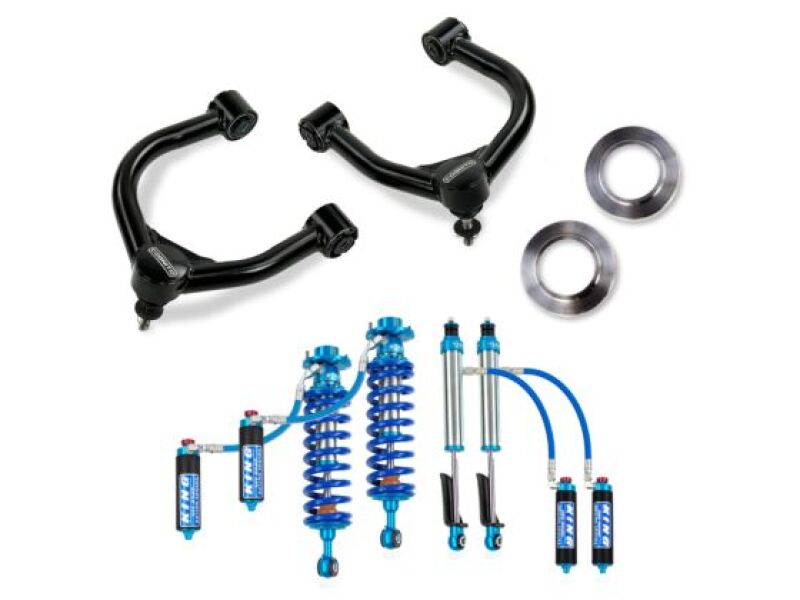

Cognito 22-24 Toyota Tundra (w/ Rear Coil Springs) 3in Elite Leveling Lift Kit w/ King 2.5 RR Shocks

We then brought in a customer/friend’s truck that was a 2022 Tundra SR5 with TRD Off-Road package. This truck had the coil sprung rear end, and the OEM red Bilstein shocks. This truck already had a competitor’s leveling lift kit on it. It is one of those kits that has a ½” thick strut spacer along with a taller billet preload collar, and in the rear has a ¾” thick coil spacer. That company has great reviews for this product, and I am about to tell you why I am surprised they did. This type of lift is commonly called a “Preload Collar Lift Kit”. This truck did not ride very good, in fact it rode worse than stock in the front. The reason is, this type of kit increases preload while decreasing droop travel, which deteriorates ride quality. This truck had only 1-3/4” of droop travel. We removed the previous lift kit by removing the taller preload collars from the front Bilstein struts/shocks and used the stock collars instead, then removed the ½” thick strut spacer and replaced it with the Cognito strut spacer which is significantly taller. We went ahead and left the rear end alone that already had the 3/4" coil spacers. The result was 2.5” of front lift over stock, and a ride that was night and day better. I believe this truck only yielded 2.5” of front lift rather than 3” like my truck, because it was a 2WD. This truck with the Bilstein shocks rode even better than my truck that had the AVS shocks.

• Maintains adequate droop travel to optimize ride quality
• King 2.5 Reservoir Shocks with compression adjusters
• Cognito Ball Joint Tubular Upper Control Arm Kit
• Yields 3 inches of front lift
• Improved ball joint angle
• 7-hour DIY install time
• Made in the USA
